• (LS) Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)
1 1

Sunix

(LS) Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)

(LS) Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)

$499.00
$499.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

(LS) Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS (LS)

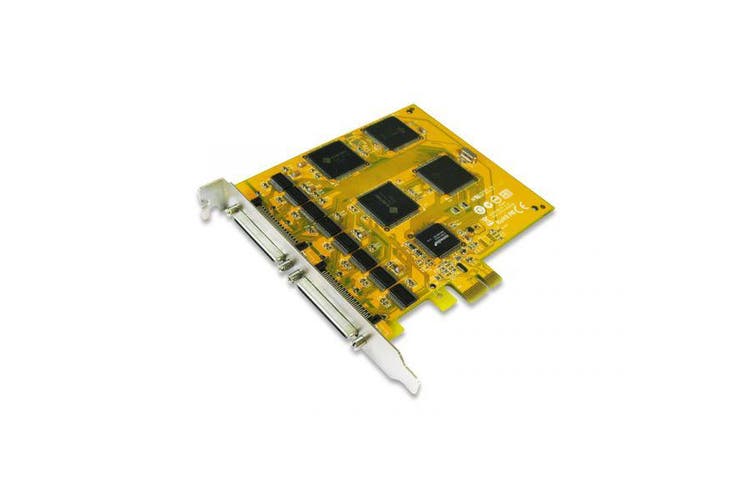

  • Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS
  • Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.
  • Serial Communication
  • Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Controller SUNIX SUN1999
  • 16C950 UART Compatible) Baud rate 50bps ~921.6Kbps
  • BUS PCI Express one lane (x1) Stop bit 1, 1.5, 2
  • No. of Port 16-port Parity even, odd, none, mark, space
  • IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS
  • FIFO 128byte Hardware PCB Connector Mini SCSI 68 Female
  • Protection ±15KV ESD protection for each signal Human Body Model (HBM)
  • 15KV IEC1000-4-2 Air Gap Discharge
  • 8KV IEC1000-4-2 Contact Discharge
  • Dimension
  • PCB Dimension 120 x 110 mm
  • Bracket Standard 121 mm
  • Bracket Space 1
