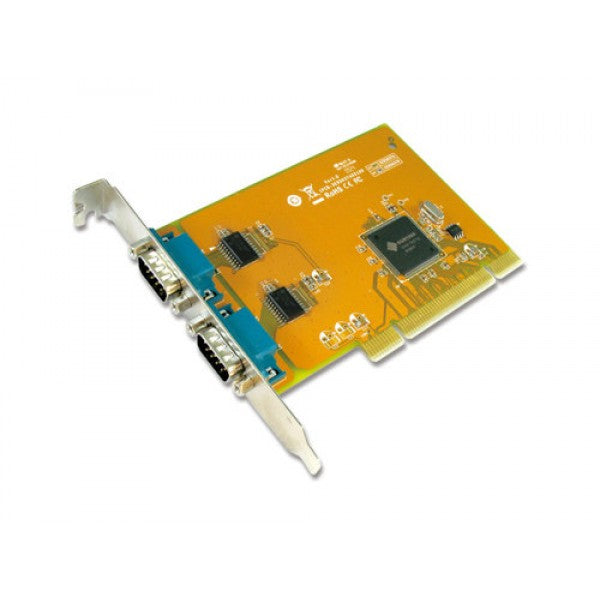

• (LS) Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS(L)
1 1

Sunix

(LS) Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS(L)

(LS) Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS(L)

$39.00
$39.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

(LS) Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS(L)


  • Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up to 115.2Kbps; Support Microsoft Windows, Linux, and DOS
  • Description
  • Product Description 2-port RS-232 Universal PCI Serial Board
  • Serial Communication
  • Interface RS-232
  • Controller SUNIX SUN1989 (16C950 UART Compatible)
  • Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
  • No. of Port 2-port
  • IRQ & IO Assigned by System
  • FIFO 128 byte (Hardware)
  • Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
  • Baud rate 50 bps to 115.2 Kbps
  • Data bit 5,6,7,8
  • Stop bit 1,1.5,2
  • Parity None, Even, Odd, Space, Mark
  • Flow Control None, Xon/Xoff, RTS/CTS
  • Protection ±2KV ESD protection for each signal Human Body Model (HBM)
  • PCB connector DB9 Male
  • Driver Support
  • Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
  • Windows Server 2003 / 2008 / 2012 / 2016 (X64)
  • Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
  • Linux Linux 2.x / 3.x / 4.x
  • DOS DOS
  • FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
  • QNX QNX 6.3.2/6.4.0
  • IBM OS/2 WARP 3/WARP 4
  • SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
  • Sun Microsystems Solaris 10
  • Note : “ * ' Supported by special inquiry.
  • Regulatory Approvals
  • Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS
  • Software Microsoft WHQL Windows
  • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
  • Windows Server: 2003 / 2008 / 2012 / 2016 (X64)
  • Environment
  • Operation Temperature 0 to 60°C (32 to 140°F)
  • Operation Humidity 5 to 95% RH
  • Storage Temperature -20 to 85°C (-4 to 185°F)
  • Dimension
  • PCB Dimension 120 x 82 mm
  • Bracket Standard 121 mm
  • Bracket Space 1
