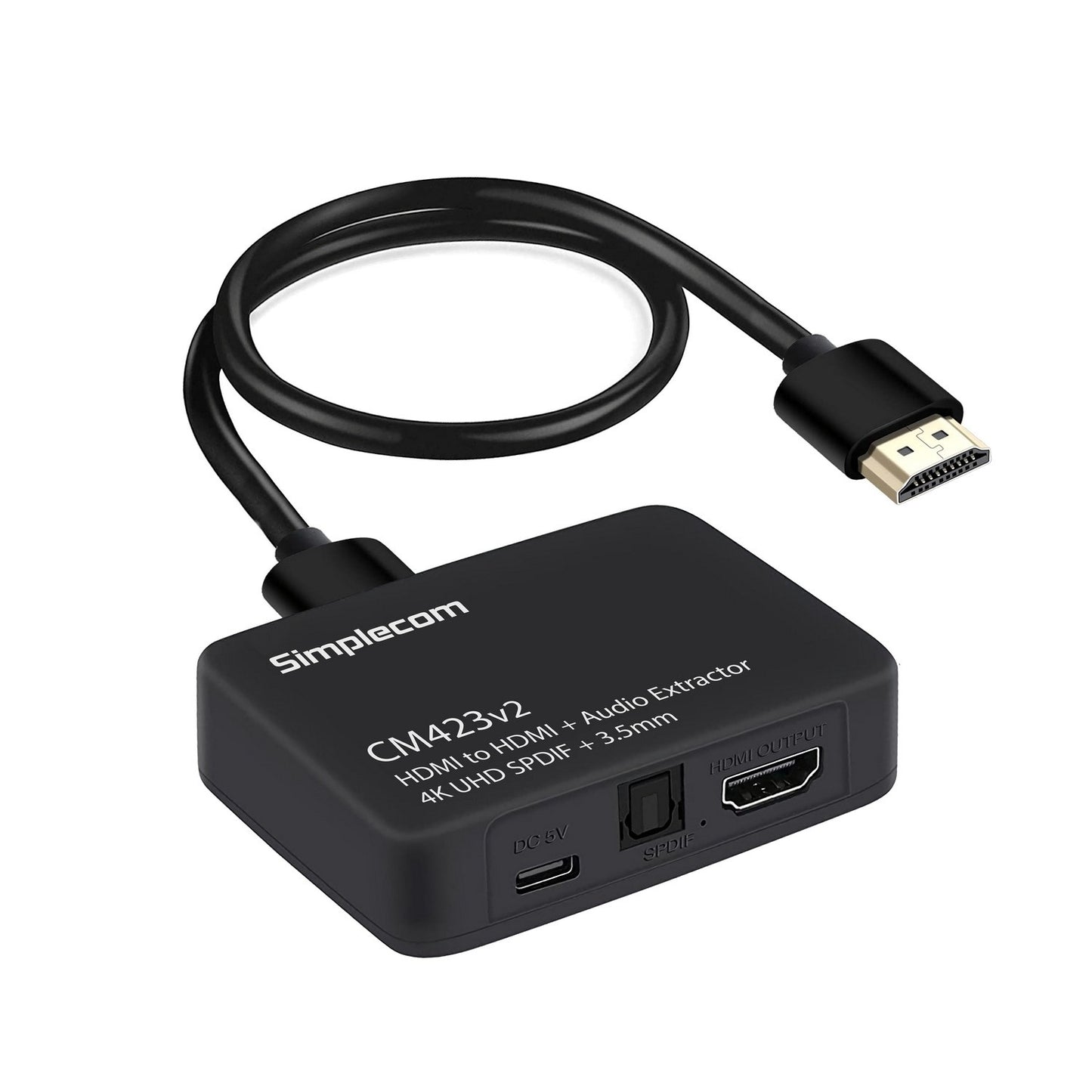

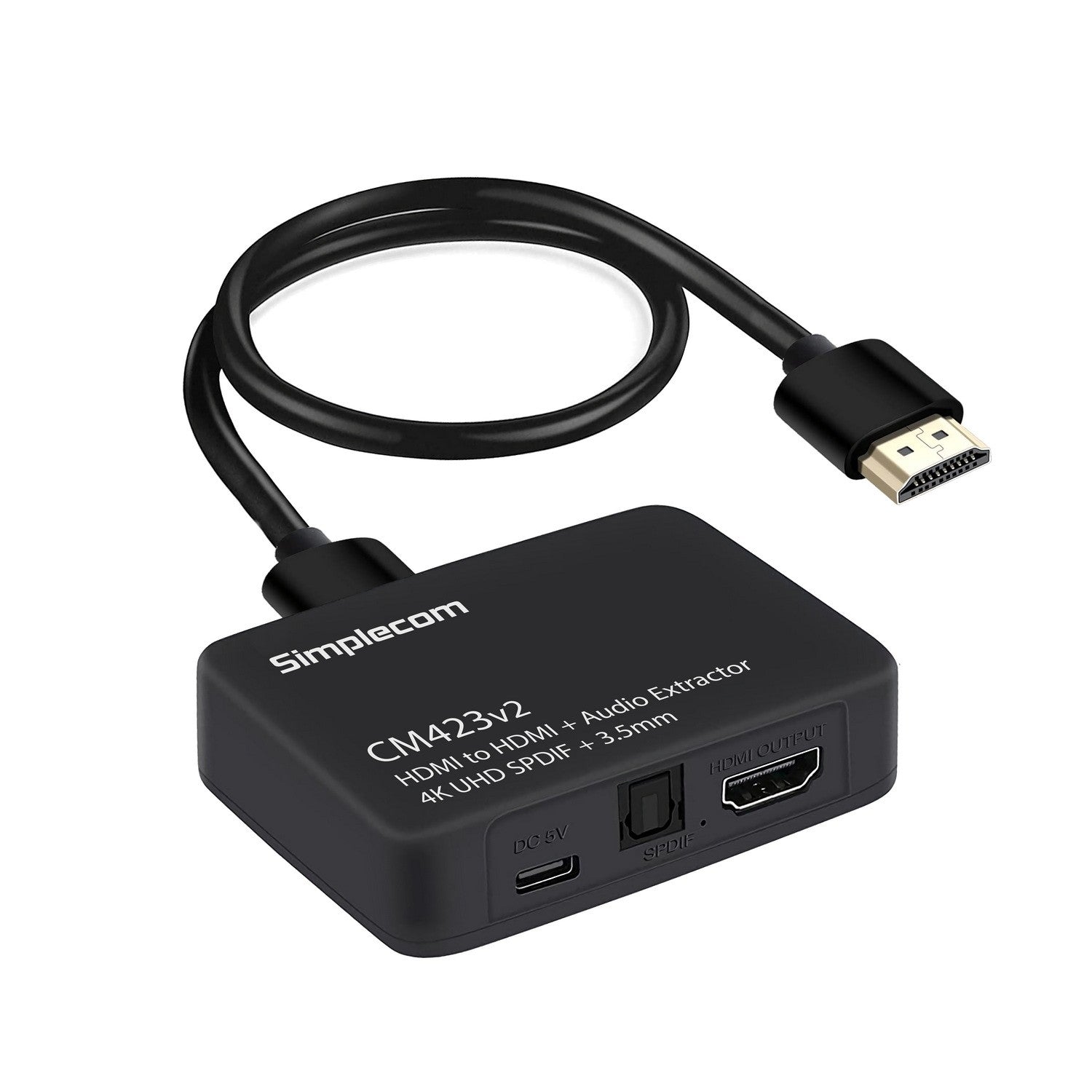

• Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo
1 1

Simplecom

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo

$49.00
$49.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo


  • Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo
  • Features
  • Optical SPDIF and 3.5mm audio output extracted from HDMI input
  • One HDMI output for HDMI pass-through
  • Ideal solution for connecting external speaker system with analog or optical input
  • SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio
  • HDMI 1.4b and HDCP 1.4 Compliant
  • Supports HDMI resolution up to 4K Ultra HD
  • Powered by USB, plug and play
  • Supports compressed and uncompressed audio format, such as DTS-HD, Dolby TrueHD, Dolby Digital, PCM, LPCM
  • Specifications
  • HDMI Version: HDMI 1.4b
  • HDCP Version: HDCP 1.4
  • EDID Support: EDID 1.4
  • Input: 1x HDMI Female
  • Audio Outputs: 1x SPDIF (Optical), and 1 x 3.5mm Stereo Audio (Analog)
  • Video Output: 1x HDMI Female (HDMI pass-through)
  • HDMI Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  • Audio Format Support: DTS-HD, Dolby TrueHD, Dolby AC3, PCM, LPCM, DTS, DSD
  • Max Bandwidth: 400 MHz
  • Max Baud Rate: 10.2 Gbps
  • Input/Output TMDS signal: 0.5~1.5Volts p-p (TTL)
  • Input/Output DDC signal: 5Volts p-p (TTL)
  • Max working current: 350mA
  • Operation Temperature: -10°C ~ 50°C
  • Dimension: 75 x 55 x 25mm (LxWxH)
  • Weight: 43g
  • Package Contents
  • 1x HDMI Audio Extractor
  • 1x 0.5M HDMI Cable
  • 1x USB Power cable
  • 1x USB Wall Charger
  • 1x User Manual
