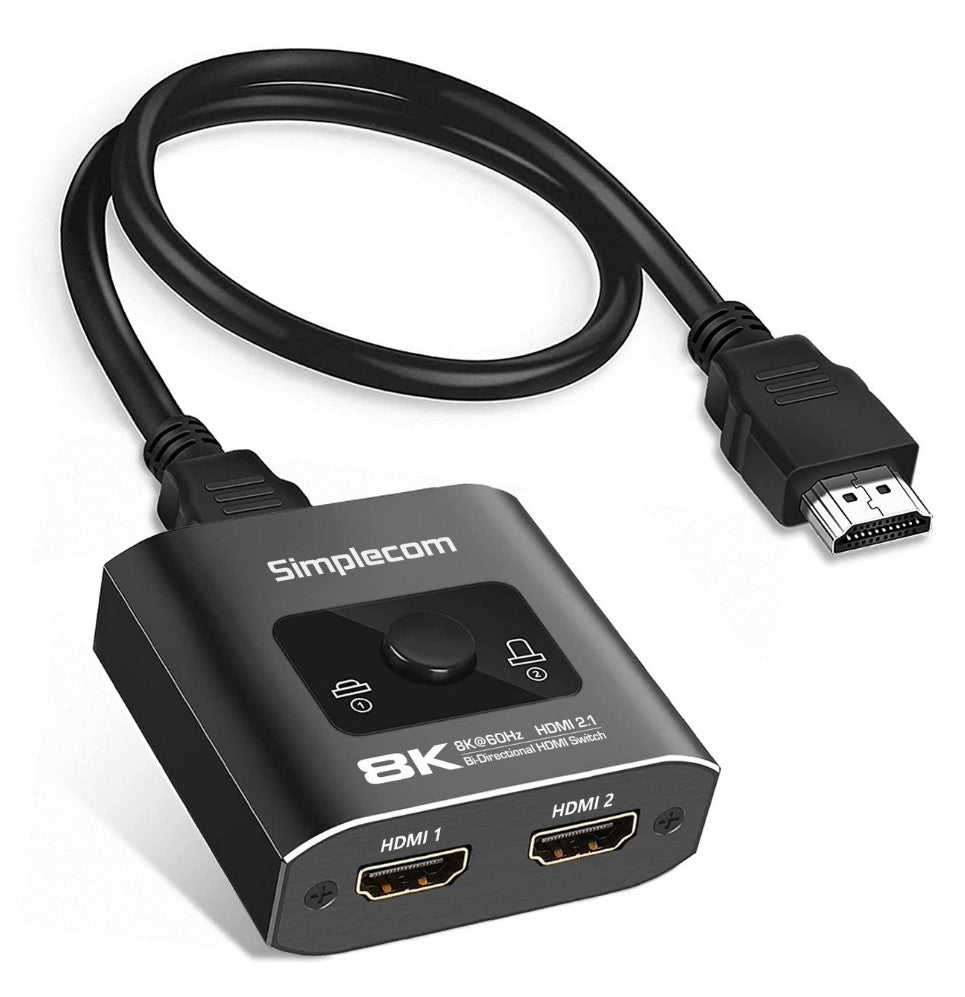

• Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K
1 1

Simplecom

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K

$19.00
$19.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K


  • Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K
  • Features
  • Bi-Directional HDMI 2.1 switch for toggling between 2 HDMI sources or displays
  • Quickly switch video sources or displays without having to swap cables
  • Durable aluminium alloy casing, also efficiently dissipate heat
  • Portable and compact size, easy to install
  • HDMI 2.1 compliant, support bandwidth up to 48Gbps
  • Support HDMI video resolution up to 8K@60hz
  • HDCP 2.3 compliant, wide compatibility with most HDMI source devices
  • Powered by HDMI source device, no external power required
  • Specifications
  • Model: CM302v2
  • HDMI Version: HDMI 2.1
  • Video Resolution Support: up to 1080@240Hz, 4K@120Hz, 8K@60Hz
  • Audio Format Support: DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1
  • HDR Format Support: HDR10
  • HDCP Version Support: HDCP 2.3
  • Max Bandwidth: 48Gbps
  • Max cable distance: Input<2M, Output<2M
  • Max Operation Current: 15mA
  • Power Input: USB DC 5V (Backup power only)
  • Operating Temperature: (-15 to +55°C)
  • Dimension (L x W x H): 53x52x21mm
  • Weight: 45g
  • Package Contents
  • 1 x Bi-Directional HDMI Switch
  • 1 x HDMI cable
  • 1 x User Manual
  • Important Notes:
  • The length of the HDMI cable connected to both ends of the switch should not exceed 2 meters.
  • This is a manual HDMI switch and does not support automatic switching.
  • Powered by HDMI source device, with USB-C port for backup power if no enough power from HDMI.
  • Two screens cannot display simultaneously under 1 Input 2 Outputs mode.
