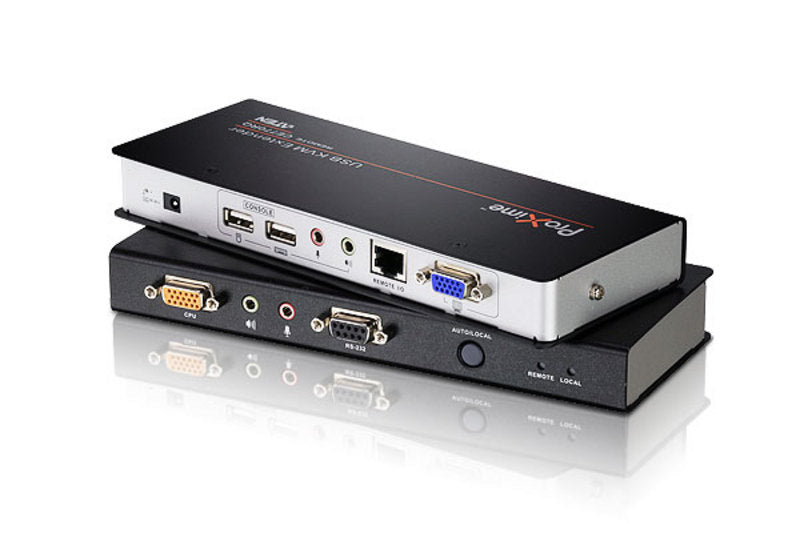

• Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920x1200@60Hz 150m, 1280x1024@60Hz 300m
1 1

Aten

Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920x1200@60Hz 150m, 1280x1024@60Hz 300m

Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920x1200@60Hz 150m, 1280x1024@60Hz 300m

$649.00
$649.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920x1200@60Hz 150m, 1280x1024@60Hz 300m


  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
  • Sun/Mac keyboard support and emulation*
  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
  • Superior Audio - no loss in audio quality at 300 m
  • Spports Wide Screen formats
  • Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install - no software required - connecting cables to the devices is all it takes
  • 1. PC keyboard combinations emulate Sun/Mac keyboards
  • 2. Sun/Mac keyboards only work with their own computers
  • Compatible Cables: 2L-5301U, 2L-5302U, 2L-5303U, 2L-5304U, 2L-5305U, 2A-130G
